easynav_costmap_maps_manager Directory Reference

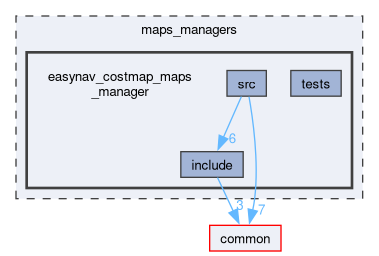

Directory dependency graph for easynav_costmap_maps_manager:
maps_managers/easynav_costmap_maps_manager

Directories

 		include
 		src
 		tests

Detailed Description

easynav_costmap_maps_manager

Description

Maps Manager that maintains 2D costmaps (static and dynamic), supports filter plugins (such as inflation and obstacle filters), and exposes maps through ROS topics and NavState integration.

At the core of this stack lies the Costmap2D data structure. Costmap2D extends the binary occupancy grid into a graded cost representation with values in the range [0–255]:

  • 0: Free space, no cost to traverse.
  • 1–252: Gradual cost values, representing increasing difficulty or proximity to obstacles.
  • 253: “Near obstacle” (inscribed obstacle) cost, traversal strongly discouraged.
  • 254: Lethal obstacle, occupied cell.
  • 255: Unknown space.

Authors and Maintainers

Supported ROS 2 Distributions

Distribution Status
humble kilted
jazzy kilted
kilted kilted
rolling rolling

Plugin (pluginlib)

  • Plugin Name: easynav_costmap_maps_manager/CostmapMapsManager
  • Type: easynav::CostmapMapsManager
  • Base Class: easynav::MapsManagerBase
  • Library: easynav_costmap_maps_manager
  • Description: Maintains a Costmap2D instance and manages map loading, updates, and filtering operations.

Parameters

Plugin Parameters (namespace: /<node_fqn>/easynav_costmap_maps_manager/CostmapMapsManager/...)

Name Type Default Description
<plugin>.package string "" Package name used to resolve relative map paths via ament_index.
<plugin>.map_path_file string "" Relative path (inside the package) to a ROS 1–style YAML map (with image, resolution, origin, etc.).
<plugin>.filters string[] [] List of filter identifiers to be instantiated (see section below).
<plugin>.<filter>.plugin string "" Type of filter plugin (e.g., easynav_costmap_maps_manager/InflationFilter).

Filter Plugins

Each entry in <plugin>.filters defines a sub-namespace <plugin>.<filter> with at least the key plugin, plus any filter-specific parameters.

ObstacleFilter

  • Plugin Name: easynav_costmap_maps_manager/ObstacleFilter
  • Type: easynav::ObstacleFilter
  • Description:
    Detects occupied cells from input point clouds (points key in NavState) and marks them as LETHAL_OBSTACLE in the dynamic costmap.
    The filter fuses incoming 3D points into the map frame, downsamples them to the costmap resolution, filters out ground-level points (z < 0.1 m), and sets corresponding cells to lethal cost. Additionally, it computes and stores bounding box (ObstacleBounds) of updated obstacles to enable efficient incremental inflation.

Parameters:

Parameter Type Default Description
(None) — — This filter does not declare additional ROS parameters beyond plugin. Downsampling resolution and frame fusion use the costmap's own resolution and map frame.

NavState Keys:

Key Type Access Description
points sensor_msgs::msg::PointCloud2 Read Input point clouds to detect obstacles.
map.dynamic.filtered Costmap2D Write Marks cells as LETHAL_OBSTACLE (254).
map.dynamic.obstacle_bounds ObstacleBounds Write Bounding box of updated obstacles for incremental inflation.

InflationFilter

  • Plugin Name: easynav_costmap_maps_manager/InflationFilter
  • Type: easynav::InflationFilter
  • Description:
    Expands obstacle information in the costmap by assigning graded costs around LETHAL_OBSTACLE cells based on distance. Uses a breadth-first wavefront propagation algorithm (distance bins) to efficiently inflate obstacles up to inflation_radius.
    The filter reads both the static map and the dynamic filtered map, applies inflation to each, and merges results. If ObstacleBounds is available in NavState, inflation is restricted to the updated region for performance.

Parameters:

Parameter Type Default Description
<plugin>.inflation_radius double 0.3 Maximum inflation distance (m) from obstacles. Cells farther than this receive no inflation cost.
<plugin>.inscribed_radius double 0.25 Radius of the inscribed zone (m). Cells within this distance of an obstacle are marked with high constant cost (INSCRIBED_INFLATED_OBSTACLE, value 253) before exponential decay begins.
<plugin>.cost_scaling_factor double 3.0 Exponential decay rate controlling how quickly cost decreases with distance beyond the inscribed radius. Higher values produce steeper cost gradients.

NavState Keys:

Key Type Access Description
map.static Costmap2D Read Static costmap to inflate.
map.dynamic.filtered Costmap2D Read/Write Dynamic costmap input and output after inflation.
map.dynamic.obstacle_bounds ObstacleBounds Read (optional) Restricts inflation to updated region for performance.

Cost Model:
Uses exponential decay: cost = exp(-cost_scaling_factor * (distance - inscribed_radius)) * 253 for distances beyond inscribed radius.

Example Configuration

maps_manager_node:
ros__parameters:
map_types: [costmap]
costmap:
plugin: easynav_costmap_maps_manager/CostmapMapsManager
package: my_maps_pkg
map_path_file: maps/warehouse.yaml
filters: [inflation, obstacles]
inflation:
plugin: easynav_costmap_maps_manager/InflationFilter
inflation_radius: 0.3 # default in code
cost_scaling_factor: 3.0 # default in code
obstacles:
plugin: easynav_costmap_maps_manager/ObstacleFilter

Interfaces (Topics and Services)

Subscriptions and Publications

Direction Topic Type Purpose QoS
Subscription <node_fqn>/<plugin>/incoming_map nav_msgs/msg/OccupancyGrid Input occupancy map used to update the dynamic map. depth=1, transient_local, reliable
Publisher <node_fqn>/<plugin>/map nav_msgs/msg/OccupancyGrid Publishes the static costmap. depth=1
Publisher <node_fqn>/<plugin>/dynamic_map nav_msgs/msg/OccupancyGrid Publishes the dynamic (live) costmap. depth=100

Services

Direction Service Type Purpose
Service Server <node_fqn>/<plugin>/savemap std_srvs/srv/Trigger Saves the current costmap(s) to disk.

NavState Keys

Key Type Access Notes
map.static Costmap2D Write Static map loaded from YAML.
map.dynamic Costmap2D Write Dynamic map after applying filters.
map.dynamic.filtered Costmap2D Read Previously filtered map used as input if available.
map.dynamic.obstacle_bounds ObstacleBounds Read Bounding box of updated obstacles (used to limit inflation region).

TF Frames

Role Transform Notes
Publishes — This manager does not broadcast TF; costmaps use their internal frame_id.

License

Apache-2.0
