GNSSPerception Class Reference

Represents a single GNSS perception from a sensor. More...

#include <GNSSPerception.hpp>

Inheritance diagram for GNSSPerception:

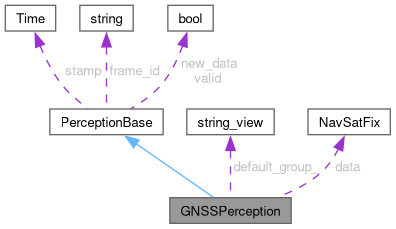

Collaboration diagram for GNSSPerception:

Public Member Functions
bool	consume_new_data ()
	Atomically reads and clears new_data.
	GNSSPerception ()
	GNSSPerception (const GNSSPerception &other)
GNSSPerception &	operator= (const GNSSPerception &other)
void	set_data (const sensor_msgs::msg::NavSatFix &msg, const rclcpp::Time &msg_stamp, const std::string &msg_frame_id)
	Atomically overwrites stamp/frame_id/data/valid from the subscription callback.
Public Member Functions inherited from PerceptionBase
virtual	~PerceptionBase ()=default

Static Public Member Functions
static bool	supports_msg_type (std::string_view t)
	Returns whether the given ROS 2 type name is supported by this perception.

Public Attributes
sensor_msgs::msg::NavSatFix	data
	GNSS data received from the sensor.
Public Attributes inherited from PerceptionBase
std::string	frame_id
	Coordinate frame associated with the perception.
bool	new_data = false
	Whether the data has changed since the last observation.
rclcpp::Time	stamp
	Timestamp of the perception (ROS time).
bool	valid = false
	Whether the perception holds usable data: set with new data, cleared by SensorsNode once it is older than "forget_time".

Static Public Attributes
static constexpr std::string_view	default_group_ = "gnss"
	Group identifier for GNSS perceptions.

Protected Attributes
std::mutex	mutex_

Detailed Description

Represents a single GNSS perception from a sensor.

Inherits from PerceptionBase and stores a sensor_msgs/msg/NavSatFix message.

Constructor & Destructor Documentation

GNSSPerception() [1/2]

GNSSPerception

(

)

GNSSPerception() [2/2]

GNSSPerception

(

const GNSSPerception &

other

)

Member Function Documentation

consume_new_data()

bool consume_new_data

(

)

Atomically reads and clears new_data.

Returns

The value of new_data before it was cleared.

operator=()

GNSSPerception & operator=

(

const GNSSPerception &

other

)

set_data()

void set_data	(	const sensor_msgs::msg::NavSatFix &	msg,
		const rclcpp::Time &	msg_stamp,
		const std::string &	msg_frame_id )

Atomically overwrites stamp/frame_id/data/valid from the subscription callback.

Guards against a concurrent copy (e.g. via NavState::get_safe()) observing a partially-updated object while this handler's RT-thread callback is writing.

supports_msg_type()

bool supports_msg_type ( std::string_view t )

static

Returns whether the given ROS 2 type name is supported by this perception.

Parameters

t	Fully qualified message type name (e.g., "sensor_msgs/msg/NavSatFix").

Returns

true if t equals "sensor_msgs/msg/NavSatFix", otherwise false.

Member Data Documentation

data

sensor_msgs::msg::NavSatFix data

GNSS data received from the sensor.

default_group_

std::string_view default_group_ = "gnss"

staticconstexpr

Group identifier for GNSS perceptions.

mutex_

std::mutex mutex_

mutableprotected

---

The documentation for this class was generated from the following file:

• easynav_sensors/include/easynav_sensors/types/GNSSPerception.hpp
