Design

This section describes EasyFleet’s architecture: how a robot’s capabilities are structured and hosted, how a mission-control process discovers and drives them, and how the Navigation Manager coordinates several robots sharing the same space.

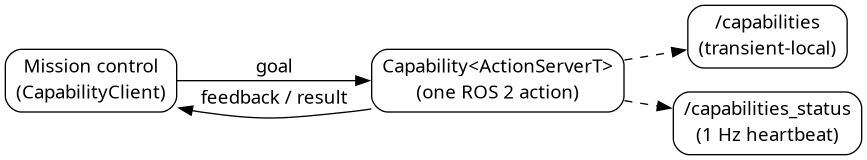

What’s a “capability”?

A capability is the atomic unit EasyFleet builds everything around: one rclcpp_lifecycle::LifecycleNode (easyfleet_core::Capability<ActionServerT>) wrapping exactly one ROS 2 action. Once activated, it:

• Publishes an easyfleet_interfaces/CapabilityDescription on the reliable, transient-local /capabilities topic — so anyone subscribing late still gets it. It carries robot, capability and action_name (all resolved from the node’s actual ROS namespace at runtime, not configured by hand) and a raw JSON description (what it does, its requirements, effects, parameters).

• Publishes a 1 Hz easyfleet_interfaces/CapabilityStatus heartbeat on /capabilities_status for as long as it stays active — how a mission controller knows a capability is not just registered but actually alive, and whether it currently has a goal executing (busy) or is free to be called, without sending it a goal just to find out.

• Exposes an allow_preemption parameter controlling whether a new goal can replace one that’s currently running, or must be rejected until the current one finishes or is canceled.

• Can always be told to stop early — canceling the goal stops whatever the capability was doing: the robot stops moving, the perception stream stops reporting, the manipulator stops executing its trajectory.

Because a capability resolves its own identity from its ROS namespace, the exact same binary announces itself correctly whether it’s launched as /robot_1/navigation or /robot_2/navigation — nothing about a capability’s own code needs to know which robot it’s running on.

Any integrator adds a new backend for a capability domain by subclassing one of easyfleet_core’s three domain base classes (NavigationActionServerBase, ManipulationActionServerBase, PerceptionActionServerBase) and implementing on_goal_received()/ on_execute() — everything else (announcing itself, the heartbeat, preemption bookkeeping, cancellation) is handled by Capability<T> and needs no changes. EasyFleet ships one real backend this way, on top of EasyNavigation’s navigation stack — see Examples.

Note

NavigationActionServerBase/ManipulationActionServerBase/ PerceptionActionServerBase are convenience subclasses for the three domains easyfleet_interfaces ships today — not a hard limit on what a capability can be. Capability<ActionServerT>/ ActionServerBase<ActionT> are templated on any ROS 2 action type: a brand-new capability domain (say, Inspection or Charging) is your own .action file plus a direct ActionServerBase<YourActionT> subclass — announcing itself on /capabilities, the heartbeat, preemption bookkeeping, and discovery all keep working unchanged, with no framework code to modify.

Interfaces

easyfleet_interfaces defines three actions general enough that any robot’s implementation of a capability — any navigation stack, any manipulator, any perception modality — can express itself through the same interface, with a parameters_json escape hatch for stack-specific tuning:

• Navigation: go to target_pose, optionally via ordered waypoints.

• Manipulation: reach a joint_target, a pose_target, or run a named_task, selected by mode.

• Perception: detect/report object_classes, once or continuously.

All three share a result-code convention (SUCCESS=0, REJECTED=1, ABORTED=2, CANCELED=3, TIMEOUT=4, with capability-specific codes starting at 10) — documented, not enforced by the type system, since .action files can’t share constants across packages.

Note

Because Navigation is a plain, generic ROS 2 action — not nav2_msgs/action/NavigateToPose, not anything Nav2-specific — EasyFleet itself is navigation-stack-agnostic: a NavigationActionServerBase subclass could just as well wrap Nav2, a custom driver, or any other stack — EasyNav is simply the one backend this project ships today (see Examples). easyfleet_navigation_manager (see Navigation Manager) is currently the one place that assumes EasyNav specifically, for the fleet-wide map/routes/pause-resume plumbing — isolating that coupling so a Nav2-backed fleet could use it too is planned, not done yet.

The robot side: Deployment and CapabilityFactory

One process per robot, one easyfleet_core::Deployment per process — matching reality: a real fleet’s robots each have their own onboard computer, so a deployment abstraction spanning several robots in one process would be modeling something that doesn’t exist outside a single-machine simulation.

Deployment replaces the configure → check → activate → check → spin → deactivate → cleanup → shutdown dance every robot process would otherwise repeat by hand, plus the “which concrete class does the string 'navigation' mean” lookup: add_capability(name) loads a pluginlib-registered CapabilityFactory for that name and constructs the matching capability. A concrete backend becomes pluginlib-loadable with one PLUGINLIB_EXPORT_CLASS line, no boilerplate factory class of its own to write (CapabilityFactoryFor<YourActionServerT> covers every case). The robot’s identity comes entirely from the ROS namespace the process itself was launched under — Deployment needs no namespace of its own.

easyfleet::init(argc, argv);

easyfleet::Deployment deployment;
deployment.add_capabilities_from_parameters("my_deployment_package");

deployment.start();
deployment.run();
deployment.shutdown();

The mission-control side

A separate process discovers a fleet’s capabilities and drives them — never linked against any capability’s implementation, only against easyfleet_interfaces’ action types. Two client libraries speak the exact same wire protocol (/capabilities, /capabilities_status, the easyfleet_interfaces actions), so a controller written against either is interchangeable against the same fleet, no matter which one hosted the capabilities it talks to:

• C++ — easyfleet_mission_manager’s FleetSession/ RobotHandle/SimpleController.

• Python — easyfleet_mission_manager_py, a 1:1 port of the same three types.

See Mission Manager for the full API. A minimal controller looks like this in either language — this is genuinely all a manual, hand-written mission needs:

easyfleet::init(argc, argv);
easyfleet::SimpleController controller;

easyfleet::RobotHandle robot_1("robot_1");
controller.add_robot(robot_1);
controller.discover_capabilities();

robot_1.run_capability<easyfleet_mission_manager::Navigation>(
  "navigation", easyfleet_mission_manager::make_navigation_goal("kitchen"));
while (robot_1.is_capability_running("navigation")) {
  controller.spin_some();
}

controller.shutdown();

rclpy.init()
controller = SimpleController()

robot_1 = RobotHandle("robot_1")
controller.add_robot(robot_1)
controller.discover_capabilities()

robot_1.run_capability("navigation", Navigation, make_navigation_goal("kitchen"))
while robot_1.is_capability_running("navigation"):
    controller.spin_some()

controller.shutdown()

Both snippets above are what SimpleController is: a mission script decides everything by hand, in order, with no plumbing beyond “send a goal, wait, check the result”. Writing your own controller (C++ or Python) and your own deployment (the robot-side launch/config that goes with it) is exactly what most EasyFleet users will actually spend their time on — easyfleet_core/easyfleet_mission_manager are meant to fade into the background once a fleet is up and running. The example mission scripts this project ships (a hand-rolled one and its RobotHandle-based sibling, each available in C++ and Python) are templates to start from, not the point of the exercise.

Nothing about FleetSession/RobotHandle assumes a linear script, either — see Extensibility: building other controllers on FleetSession below for building a controller with real decision-making on top of the exact same primitives: one that asks an LLM what to do next from inside its own spin_some()-driven loop, or one whose PDDL planner (PlanSys2, for example) action implementations reach into the fleet through robots()/find_robot() instead of a fixed phase-by-phase script.

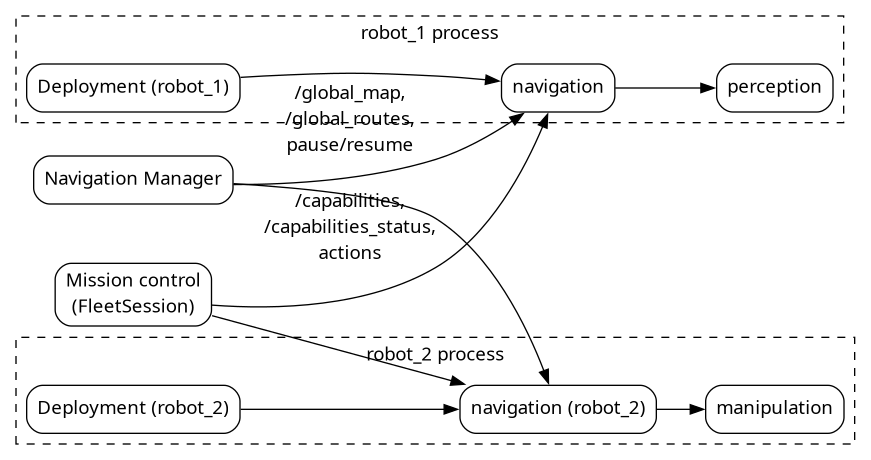

Robot vs. mission control

Every EasyFleet deployment is split into two kinds of process that never link against each other’s implementation, only ever talk over ROS actions/topics:

This split is what makes discovery meaningful in the first place: a mission-control process has no compile-time knowledge of what robots exist or which capabilities they carry — it finds out by listening on /capabilities//capabilities_status, the same way any other operator or control-computer program would.
