Navigation Manager

easyfleet_navigation_manager is a third kind of process, alongside a robot and mission control: one process per fleet, not per robot, that gives every robot’s own EasyNavigation instance a single, shared view of the map and the route graph, and watches every robot’s planned path to prevent them from colliding with each other.

Note

This package is the one place in EasyFleet that currently assumes EasyNav specifically — the Navigation action itself is framework- agnostic (see Design), but the fleet-wide map/routes plumbing and the pause/resume protocol below both talk to EasyNav’s own maps_manager_node/GoalManager directly. Isolating that dependency behind an interface a Nav2-backed fleet could also implement is planned, not done yet.

Why a fleet-wide process at all

Left alone, every robot’s own EasyNav maps_manager_node loads its own local copy of the map and the route graph from disk. That works for one robot, but two robots sharing the same physical space need to agree on the same map and the same routes — and an operator editing a route should see that edit reflected on every robot, not just the one they happen to be looking at. navigation_manager_node is the single process that owns that shared state and every robot’s own EasyNav instance points at.

Fleet-wide map and routes

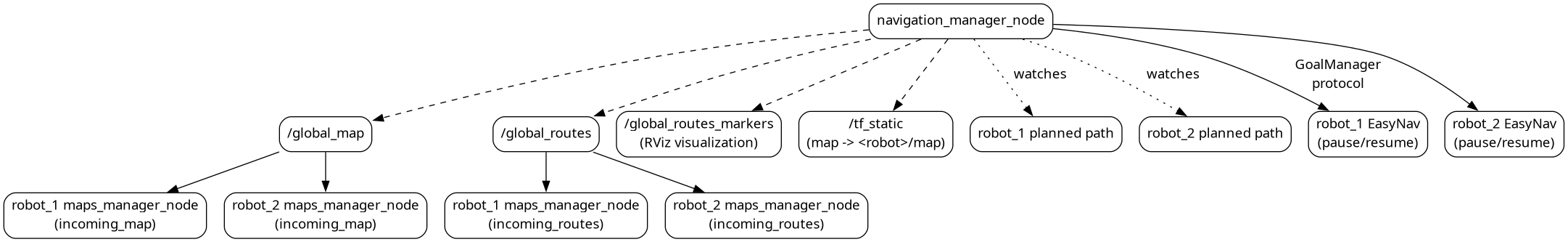

At startup, navigation_manager_node loads a map (currently a costmap, via a pluggable MapPublisherBase — more representations can be added as new factory entries) and a route graph, and publishes them:

• /global_map (nav_msgs/OccupancyGrid), transient-local — a robot that starts after this node still receives the retained map.

• /global_routes (easynav_routes_maps_manager/RoutesMap), transient-local, re-published every time the route graph is edited (see below).

Each robot’s own maps_manager_node picks this up by remapping its own per-plugin incoming_map/incoming_routes topics to these two global ones (see Examples for the exact remap direction — it must point from the plugin’s own topic name to /global_map, the reverse silently does nothing) — so every robot ends up with the exact same map and routes, without each having to load or maintain its own copy.

Live-editable routes

The route graph is not just published once — it can be edited live, directly in RViz, via the same interactive-marker mechanism EasyNav’s own RoutesMapsManager plugin uses locally: each route segment shows a toggle cube (red = view-only, green = edit mode); in edit mode, draggable start/end markers with move/rotate controls, plus “add segment” and “remove segment” buttons.

Every geometry-changing edit (dragging an endpoint, adding, or removing a segment — not merely toggling edit mode) does two things automatically:

1. Re-publishes the updated route graph on /global_routes, so every robot picks up the edit immediately.

2. Saves the change back to the same YAML file the routes were loaded from, so it survives a restart.

Note

The plain visualization MarkerArray on /global_routes_markers is kept alive by a low-rate periodic republish, not transient-local durability — a late-joining RViz session reliably receiving the retained sample of that specific message type turned out not to be guaranteed in this environment. The interactive markers themselves don’t have this problem: they actively resend their full state to any newly connected client rather than relying on durability at all.

Tying the frames together

Every robot’s own EasyNav instance applies its tf_prefix to its local map frame (e.g. robot 1’s own frame is literally robot_1/map), while /global_map//global_routes are both stamped with the plain, unprefixed map frame. For the two to line up in one TF tree, navigation_manager_node also broadcasts one static, identity transform map → <robot_id>/map per watched robot, on /tf_static — every robot in a fleet is assumed to share the exact same map, only their pose within it differs, so identity is the correct transform.

Tracking which robots exist

The set of robots being watched (for the TF broadcast above, and for the conflict monitor below) can be configured two ways:

• ``robots.static_list`` — a fixed list of robot namespaces. Simplest, and what every current example deployment uses.

• Dynamic tracking (when robots.static_list is empty) — a plain subscription to /capabilities_status records a heartbeat timestamp per robot; a periodic timer adds a watcher for any newly-heard-from robot and drops one whose heartbeat has gone stale for longer than robots.staleness_sec. No extra rclcpp::Node, executor, or thread is created for this — a deliberate constraint on this package: one node, one executor, everything driven by plain subscription callbacks and timers on that same node.

Conflict detection and pause/resume

navigation_manager_node continuously watches every tracked robot’s currently planned path (one lightweight watcher per robot, all sharing the same node) and, on a timer, checks every pair of robots for an imminent path conflict:

• Two robots’ current positions must be within conflict.proximity_radius_m of each other — a coarse, cheap pre-filter.

• Their lookahead path segments (the next conflict.lookahead_distance_m of each robot’s plan) must come within conflict.path_conflict_distance_m of each other at some point.

When both hold, the robot with the longer remaining path to its own goal is paused — the one closer to finishing continues, clearing the conflict zone sooner. Pausing/resuming is done over EasyNav’s own GoalManager control protocol, the same mechanism a capability uses to pause/resume a single robot’s own navigation.

Important

A robot that’s already paused because of a conflict keeps yielding regardless of how the remaining-path-length comparison changes tick to tick — without this rule, a stationary robot’s remaining path can become numerically shorter than the moving robot’s, causing the two to flip which one yields back and forth. Once the conflict monitor decides who stops, that decision holds until the conflict genuinely clears.

Every conflict-check tick logs, at DEBUG level, why each nearby pair either is or isn’t considered a risk — including explicitly noting when one side of a pair is already paused and yielding — so the monitor’s decisions are auditable live (--ros-args --log-level navigation_manager_node:=debug). Pause/resume actions themselves are logged at INFO, visible by default.

Key parameters

Parameter	Meaning
map_type	Which MapPublisherBase implementation to use. Only "costmap" exists today.
map.package / map.map_path_file	Where to load the fleet-wide map from.
routes.package / routes.map_path_file	Where to load the fleet-wide route graph from (and where live edits are saved back to).
routes.markers_republish_rate_hz	How often the visualization MarkerArray is re-published (see the note above). Default 1 Hz.
robots.static_list	Fixed robot namespace list. Empty (the default) enables dynamic tracking instead.
robots.staleness_sec / robots.rescan_rate_hz	Dynamic-tracking-only: how long without a heartbeat before a robot is dropped, and how often that check runs.
robots.planner_plugin_key	The planner_types entry name each robot’s PlannerNode is configured with — determines which per-robot path topic to watch.
conflict.check_rate_hz	How often the conflict-detection timer runs.
conflict.lookahead_distance_m / conflict.path_conflict_distance_m / conflict.proximity_radius_m	See Conflict detection and pause/resume above.
