VoxelGrid< DataT >::Accessor Class Reference

Class to be used to set and get values of a cell of the Grid. More...

#include <bonxai.hpp>

Inheritance diagram for VoxelGrid< DataT >::Accessor:

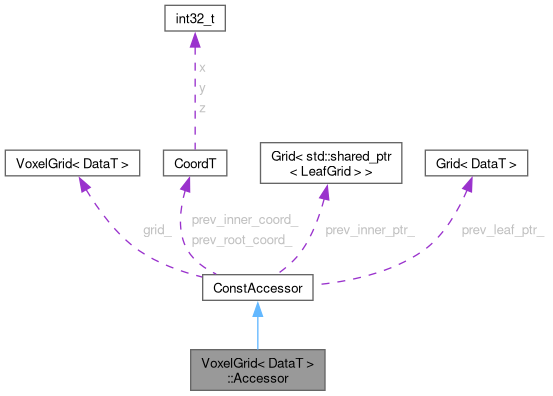

Collaboration diagram for VoxelGrid< DataT >::Accessor:

Public Member Functions
	Accessor (VoxelGrid &grid)
LeafGrid *	getLeafGrid (const CoordT &coord, bool create_if_missing=false)
	getLeafGrid gets the pointer to the LeafGrid containing the cell.
bool	setCellOff (const CoordT &coord)
	setCellOff will disable a cell without deleting its content.
bool	setCellOn (const CoordT &coord, const DataT &default_value=DataT())
	setCellOn is similar to setValue, but the value is changed only if the cell has been created, otherwise, the previous value is used.
bool	setValue (const CoordT &coord, const DataT &value)
	setValue of a cell.
DataT *	value (const CoordT &coord, bool create_if_missing=false)
	value getter.
Public Member Functions inherited from VoxelGrid< DataT >::ConstAccessor
	ConstAccessor (const VoxelGrid &grid)
const LeafGrid *	getLeafGrid (const CoordT &coord) const
bool	isCellOn (const CoordT &coord) const
	isCellOn only check if a cell is in "On" state
const InnerGrid *	lastInnerGrid () const
	lastInnerGrid returns the pointer to the InnerGrid in the cache.
const LeafGrid *	lastLeafGrid () const
	lastLeafGrid returns the pointer to the LeafGrid in the cache.
const DataT *	value (const CoordT &coord) const
	value getter.

Additional Inherited Members
Protected Attributes inherited from VoxelGrid< DataT >::ConstAccessor
const VoxelGrid &	grid_
CoordT	prev_inner_coord_ = {std::numeric_limits<int32_t>::max(), 0, 0}
const InnerGrid *	prev_inner_ptr_ = nullptr
const LeafGrid *	prev_leaf_ptr_ = nullptr
CoordT	prev_root_coord_ = {std::numeric_limits<int32_t>::max(), 0, 0}

Detailed Description

template<typename DataT>
class Bonxai::VoxelGrid< DataT >::Accessor

Class to be used to set and get values of a cell of the Grid.

It uses caching to speed up computation.

Create an instance of this object with the method VoxelGrid::createAccessor()

Constructor & Destructor Documentation

Accessor()

template<typename DataT>

Accessor

(

VoxelGrid &

grid

)

Member Function Documentation

getLeafGrid()

template<typename DataT>

VoxelGrid< DataT >::LeafGrid * getLeafGrid ( const CoordT & coord, bool create_if_missing = false )

nodiscard

getLeafGrid gets the pointer to the LeafGrid containing the cell.

It is the basic class used by setValue() and value().

Parameters

coord	Coordinate of the cell.
create_if_missing	if true, create the Root, Inner and Leaf, if not present.

setCellOff()

template<typename DataT>

bool setCellOff

(

const CoordT &

coord

)

setCellOff will disable a cell without deleting its content.

Parameters

coord

coordinate of the cell.

Returns

the previous state of the cell (ON = true).

setCellOn()

template<typename DataT>

bool setCellOn	(	const CoordT &	coord,
		const DataT &	default_value = DataT() )

setCellOn is similar to setValue, but the value is changed only if the cell has been created, otherwise, the previous value is used.

Parameters

coord	coordinate of the cell.
default_value	default value of the cell. Use only if the cell did not exist before.

Returns

the previous state of the cell (ON = true).

setValue()

template<typename DataT>

bool setValue	(	const CoordT &	coord,
		const DataT &	value )

setValue of a cell.

If the cell did not exist, it is created.

Parameters

coord	coordinate of the cell
value	value to set.

Returns

the previous state of the cell (ON = true).

value()

template<typename DataT>

DataT * value ( const CoordT & coord, bool create_if_missing = false )

nodiscard

value getter.

Parameters

coord

coordinate of the cell.

Returns

return the pointer to the value or nullptr if not set.

---

The documentation for this class was generated from the following file:

• maps_managers/easynav_bonxai_maps_manager/include/bonxai/bonxai.hpp
