Using the Routes Maps Manager with Costmaps

This how-to describes how to create and use navigation routes with easynav_routes_maps_manager and how to constrain a 2D costmap around those routes using the easynav_routes_maps_manager/RoutesCostmapFilter plugin.

The process is split in two main steps:

1. Creating routes interactively and saving them to a YAML file.

2. Using the saved routes in a full navigation stack so that the costmap is filtered to keep the robot close to the defined routes.

Note

This how-to assumes that you already have an EasyNav workspace and a working costmap-based scenario (e.g., the indoor testcase). Only the parts specific to routes are shown here.

1) Creating routes

In this first step we will run only the maps manager node with a minimal configuration: a costmap maps manager providing the 2D map, and a routes maps manager with the routes costmap filter enabled. All other components (controller, planner, localizer, etc.) can be left out or run with dummy configurations, since we only care about editing and saving the routes.

Example parameters file

Below is an example of a minimal parameters file focused on costmap and routes only:

maps_manager_node:
  ros__parameters:
    use_sim_time: false
    map_types: [costmap, routes]
    routes:
      freq: 10.0
      plugin: easynav_routes_maps_manager/RoutesMapsManager
      filters: [routes_costmap]
      routes_costmap:
        plugin: easynav_routes_maps_manager/RoutesCostmapFilter
        min_cost: 50
        route_width: 0.5
      cycle_time_nort: 0.001
      cycle_time_rt: 0.001
    costmap:
      freq: 10.0
      plugin: easynav_costmap_maps_manager/CostmapMapsManager
      package: easynav_indoor_testcase
      map_path_file: maps/home2.yaml
      filters: [obstacles, inflation]
      obstacles:
        plugin: easynav_costmap_maps_manager/CostmapMapsManager/ObstaclesFilter
      inflation:
        plugin: easynav_costmap_maps_manager/CostmapMapsManager/InflationFilter
        inflation_radius: 1.3
        inscribed_radius: 0.25
        cost_scaling_factor: 3.0

Key points:

• The costmap block is configured as in a normal EasyNav scenario and provides the 2D map on which the routes will be drawn.

• The routes block enables the easynav::RoutesMapsManager plugin and the easynav::RoutesCostmapFilter filter. In this phase we mainly care about seeing the effect of the routes corridor on the costmap while editing the routes.

• No package or map_path_file are provided under routes. In this case the routes manager starts with a single default segment from (0, 0, 0) to (1, 0, 0) in the map frame.

Running the maps manager

With the parameters file in place, start the maps manager node (for example from a launch file or directly with ros2 run), and open RViz22.

You should see:

• The static and dynamic costmaps published by the costmap maps manager.

• A single straight route segment (line + arrow) corresponding to the default route.

Editing routes with interactive markers

The following sequence illustrates how to edit and extend routes using the interactive markers published by the routes maps manager.

Step 0 – initial default segment

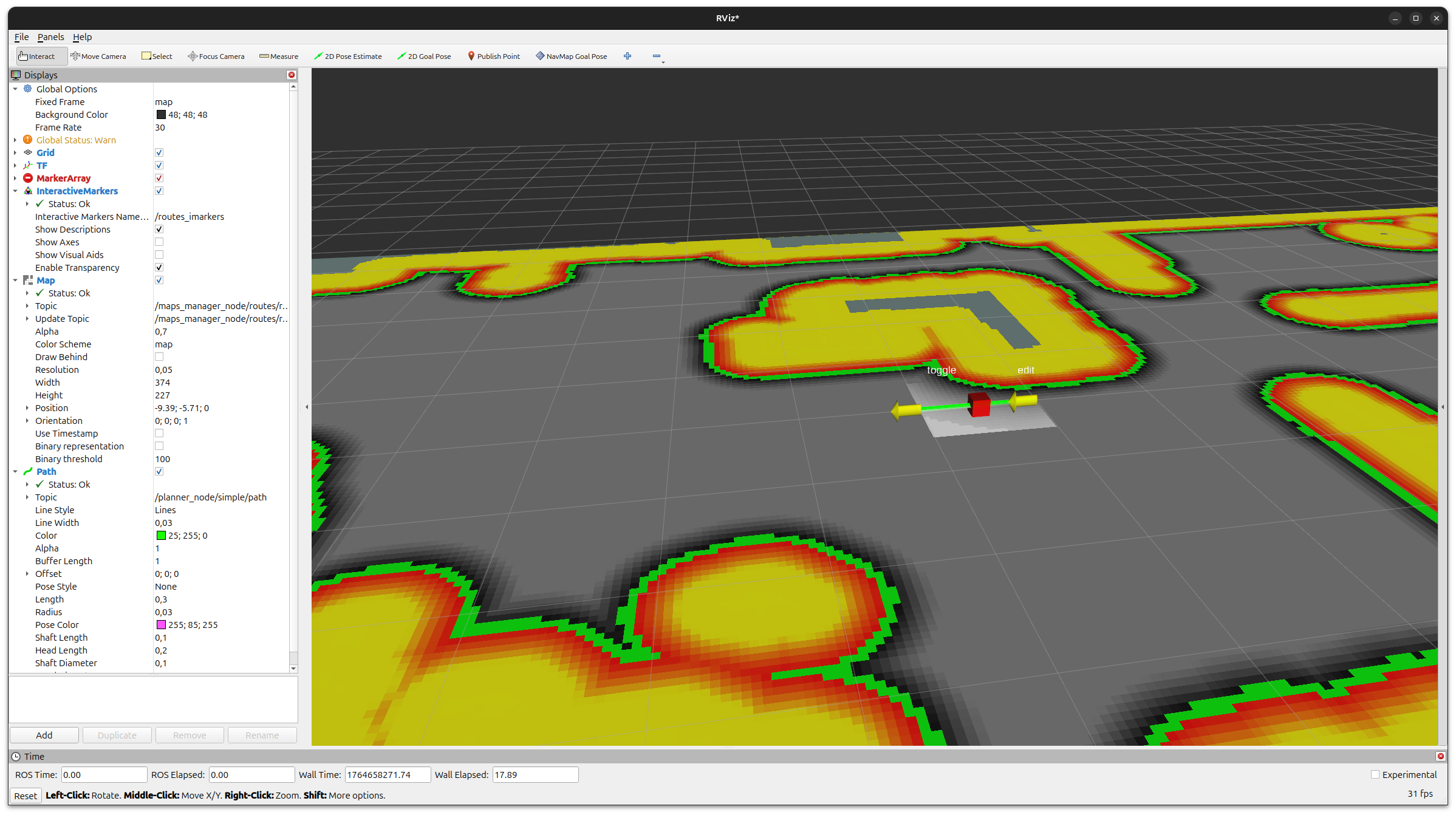

RViz2 just after starting the maps manager with no routes file: a single default segment from (0, 0, 0) to (1, 0, 0) is shown.

When the routes maps manager starts without a configured routes file, it creates a single default segment in the map frame. In RViz2 you should see this straight segment (line + arrow) over the costmap.

Step 1 – enabling the edit markers

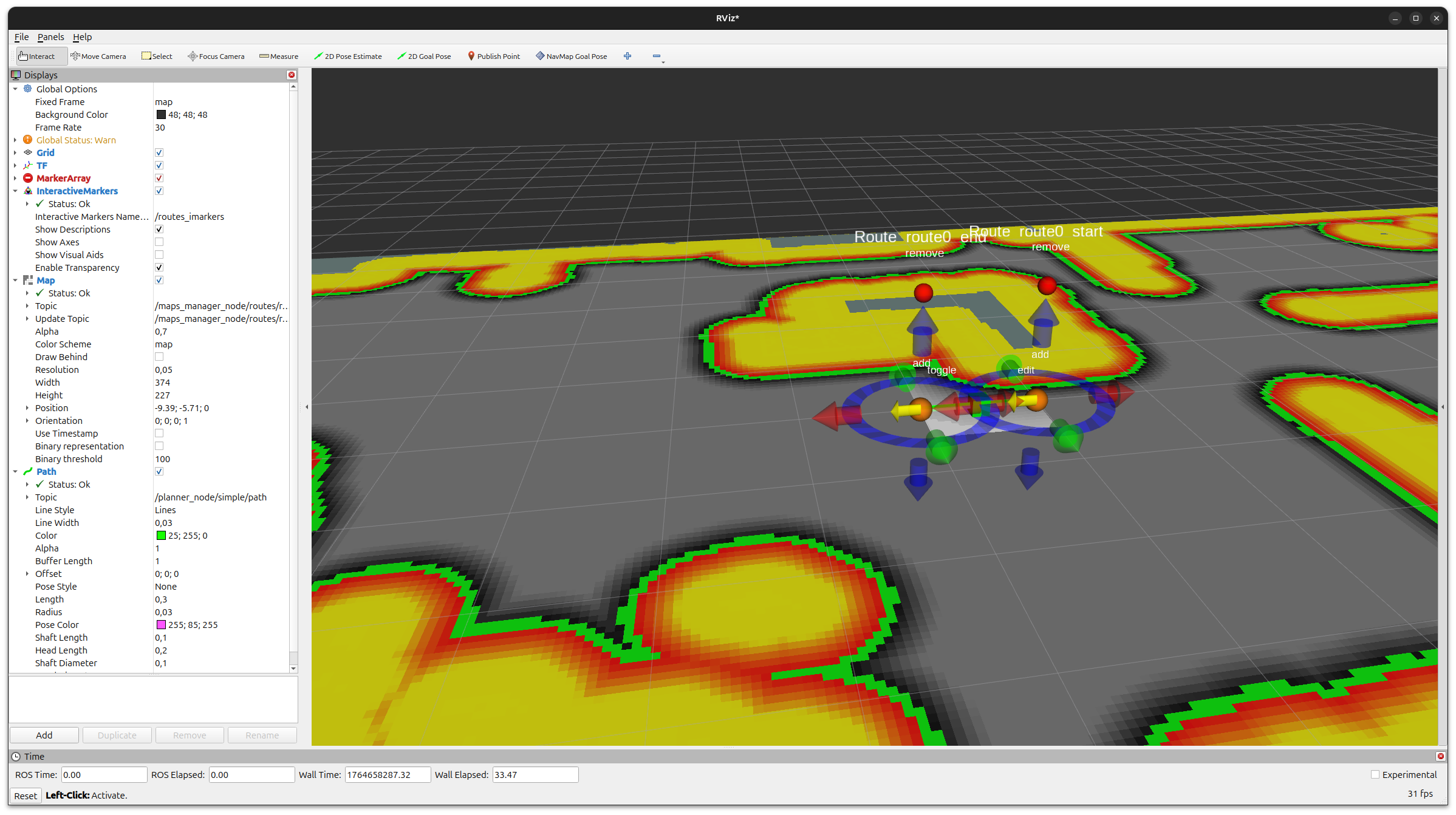

Clicking the green box enables the interactive markers for that segment.

The routes manager publishes interactive markers for editing the start and end points of each segment and for adding/removing segments. In RViz2, add an “Interactive Markers” display and select the server corresponding to routes (typically routes_imarkers or similar, depending on your namespace).

Click the green box associated with the segment to toggle edit mode on. When edit mode is enabled, RViz2 displays interactive markers on the segment endpoints:

• Move arrows to translate an endpoint along each axis.

• Rotation rings to rotate the endpoint pose.

• The green box itself acts as an edit toggle for that segment.

Step 2 – moving the segment endpoint

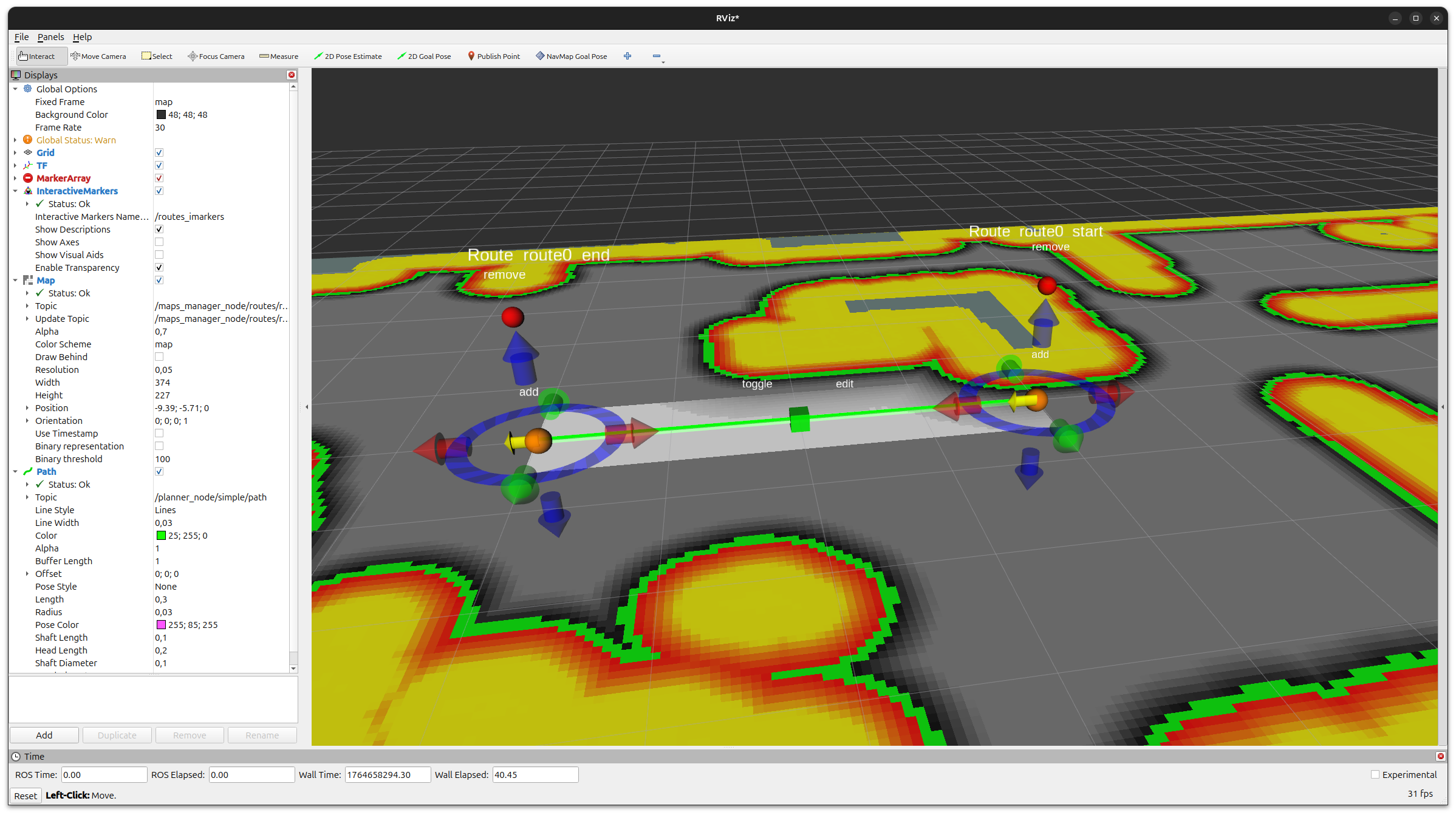

Using the red arrow handle to move the end of the segment.

Use the red arrow of the interactive marker to drag the end of the segment to the desired position. You can use this to align the route with a corridor or path on the costmap. The costmap corridor updated by the RoutesCostmapFilter will move accordingly.

Step 3 – changing orientation and adding a new segment

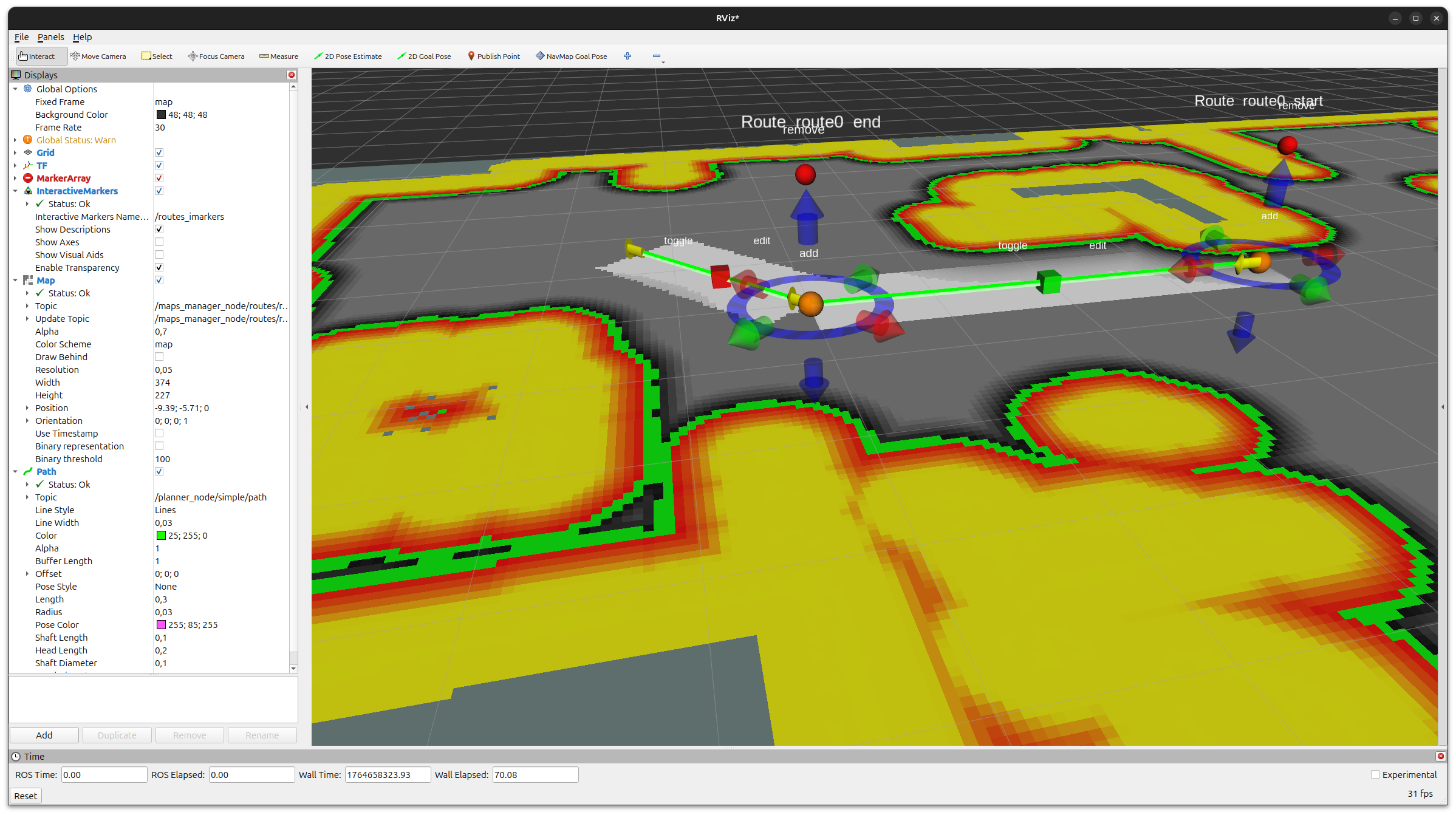

After rotating the endpoint and clicking the orange sphere, a new segment is created.

Rotate the endpoint so that its arrow points towards where you want the next segment to go. Then click the orange sphere near the end of the segment:

• The orange sphere is the “add segment” button.

• Clicking it creates a new segment chained from the current one, starting at the edited endpoint and following its orientation.

This lets you build a multi-segment route step by step.

Step 4 – switching which segment is being edited

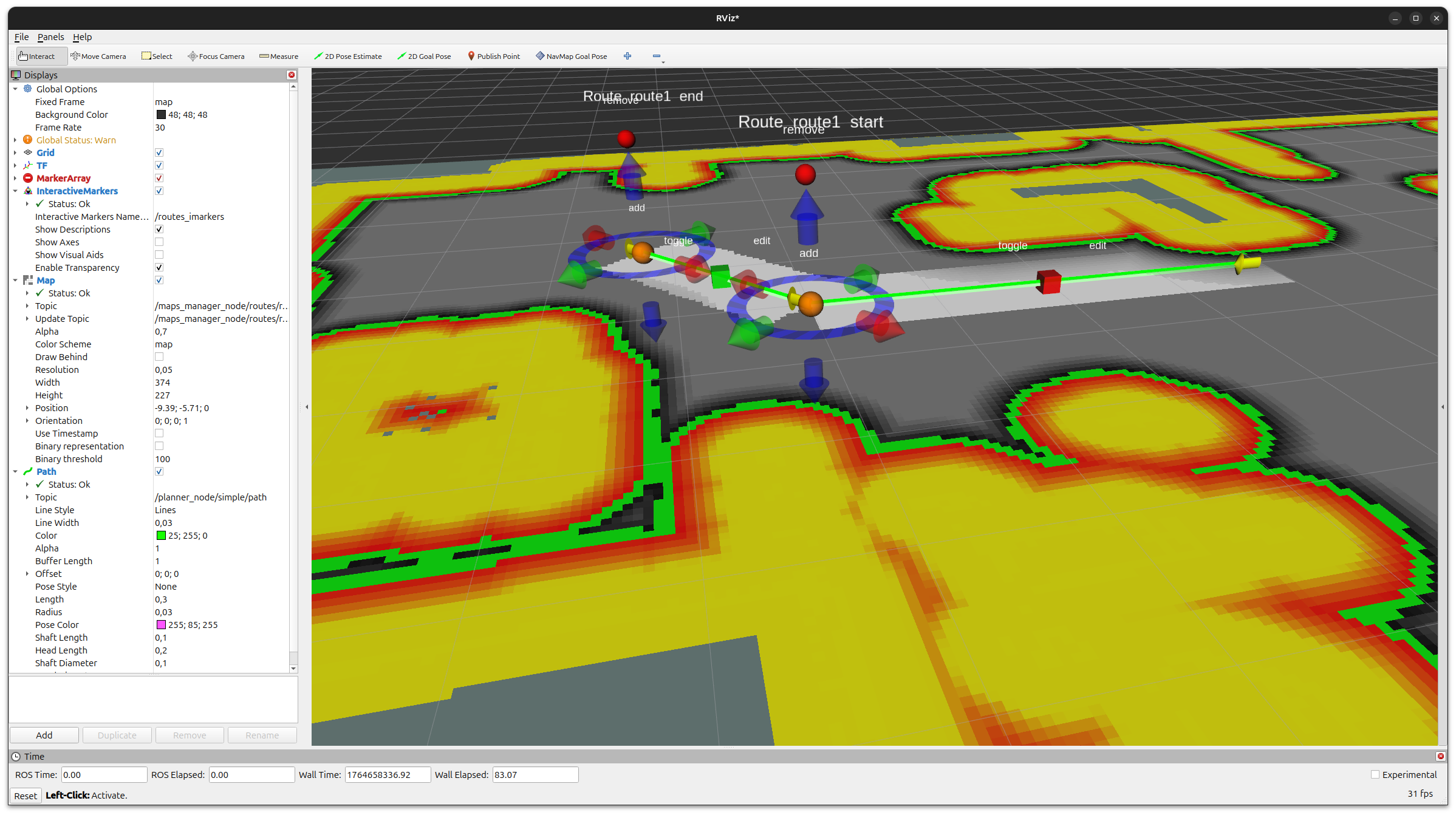

Toggling edit mode off for the first segment and on for the newly created one.

Once you have created multiple segments, you can choose which one is currently editable:

• Click the edit box on a segment to toggle its edit mode on or off.

• In this example, we disable editing on the first segment and enable it on the newly created segment.

From here you can repeat the same operations (move endpoint, rotate, use the orange sphere to add more segments) to extend the route as needed. To remove a segment, use the red box associated with that segment, which acts as a “delete segment” button.

Saving routes to a YAML file

Once you are satisfied with your route layout, you can persist it to a YAML file using the save_routes service provided by the routes maps manager.

Call the service with:

ros2 service call /maps_manager_node/routes/save_routes std_srvs/srv/Trigger {}

If routes.package and routes.map_path_file are configured, the routes are written back to that YAML file following the format described in the easynav_routes_maps_manager README (see the easynav_routes_maps_manager package for details). If they are not configured (as in the minimal example above), you can later load the generated file by setting the appropriate package and map_path_file.

2) Using the routes for navigation

In this second step we integrate the routes maps manager and the RoutesCostmapFilter into a full navigation stack, including localizer, planner, controller, sensors, and system nodes. The goal is for the costmap to be filtered so that global and local plans stay close to the saved routes.

Example navigation parameters file

The following example shows a complete configuration using routes with a costmap-based localizer and planner, and the SerEst controller:

controller_node:
  ros__parameters:
    use_sim_time: true
    colision_checker:
      active: true
      debug_markers: true
      downsample_leaf_size: 0.05
      robot_radius: 0.30
      brake_acc: 1.0
      safety_margin: 0.05
    controller_types: [serest]
    serest:
      rt_freq: 30.0
      plugin: easynav_serest_controller/SerestController
      allow_reverse: true
      max_linear_speed: 0.8
      max_angular_speed: 1.2
      v_progress_min: 0.08        # 8 cm/s minimum cruise speed when aligned
      k_s_share_max: 0.5          # lateral suction does not cancel >50% of forward motion
      k_theta: 2.5
      k_y: 1.5
      goal_pos_tol: 0.1           # 10 cm
      goal_yaw_tol_deg: 6.0       # 6 degrees
      slow_radius: 0.60
      slow_min_speed: 0.03
      final_align_k: 2.0
      final_align_wmax: 0.6
      corner_guard_enable: true
      corner_gain_ey: 1.8
      corner_gain_eth: 0.7
      corner_gain_kappa: 0.4
      corner_min_alpha: 0.35
      corner_boost_omega: 1.0
      a_lat_soft: 0.9
      apex_ey_des: 0.05

localizer_node:
  ros__parameters:
    use_sim_time: true
    localizer_types: [costmap]
    costmap:
      rt_freq: 50.0
      freq: 5.0
      reseed_freq: 1.0
      plugin: easynav_costmap_localizer/AMCLLocalizer
      num_particles: 100
      noise_translation: 0.05
      noise_rotation: 0.1
      noise_translation_to_rotation: 0.1
      initial_pose:
        x: 0.0
        y: 0.1
        yaw: 0.0
        std_dev_xy: 0.1
        std_dev_yaw: 0.01

maps_manager_node:
  ros__parameters:
    use_sim_time: true
    map_types: [costmap, routes]
    routes:
      freq: 10.0
      plugin: easynav_routes_maps_manager/RoutesMapsManager
      package: easynav_indoor_testcase
      map_path_file: maps/routes_1.yaml
      filters: [routes_costmap]
      routes_costmap:
        plugin: easynav_routes_maps_manager/RoutesCostmapFilter
        min_cost: 50
        route_width: 0.1
      cycle_time_nort: 0.001
      cycle_time_rt: 0.001
    costmap:
      freq: 10.0
      plugin: easynav_costmap_maps_manager/CostmapMapsManager
      package: easynav_indoor_testcase
      map_path_file: maps/home2.yaml
      filters: [obstacles, inflation]
      obstacles:
        plugin: easynav_costmap_maps_manager/CostmapMapsManager/ObstaclesFilter
      inflation:
        plugin: easynav_costmap_maps_manager/CostmapMapsManager/InflationFilter
        inflation_radius: 1.3
        inscribed_radius: 0.25
        cost_scaling_factor: 3.0

planner_node:
  ros__parameters:
    use_sim_time: true
    planner_types: [simple]
    simple:
      freq: 0.5
      plugin: easynav_costmap_planner/CostmapPlanner
      cost_factor: 10.0
      continuous_replan: true

sensors_node:
  ros__parameters:
    use_sim_time: true
    forget_time: 0.5
    sensors: [laser1]
    perception_default_frame: odom
    laser1:
      topic: scan_raw
      type: sensor_msgs/msg/LaserScan
    camera1:
      topic: rgbd_camera/points
      type: sensor_msgs/msg/PointCloud2

system_node:
  ros__parameters:
    use_sim_time: true
    use_real_time: true
    position_tolerance: 0.3
    angle_tolerance: 0.15

How the routes affect navigation

With this configuration:

• The RoutesMapsManager loads the previously saved routes from maps/routes_1.yaml and writes them into the NavState under the key routes.

• The RoutesCostmapFilter reads the routes and the dynamic costmap and raises the cost of all cells that lie outside a corridor of width 2 * route_width around the segments (down to a minimum of min_cost).

• The costmap planner and the SerEst controller operate on this filtered costmap. As a result, global and local paths are biased to stay close to the defined routes, avoiding large deviations into low-cost but undesired areas.

You can visualize the effect of the filter by subscribing to the debug routes_map OccupancyGrid published by the filter, and by comparing it with the original dynamic costmap. The difference will show the high-cost areas outside the routes corridor.

From here you can tune route_width and min_cost to adjust how strictly the robot should follow the routes, or implement additional routes filters (for example, for NavMap or Octomap) following the same pattern.
