Core Design and Architecture

EasyNav is designed with three core principles in mind: modularity, real-time performance, and extensibility. Its architecture separates concerns into well-defined components, making it both easy to adapt and efficient to execute.

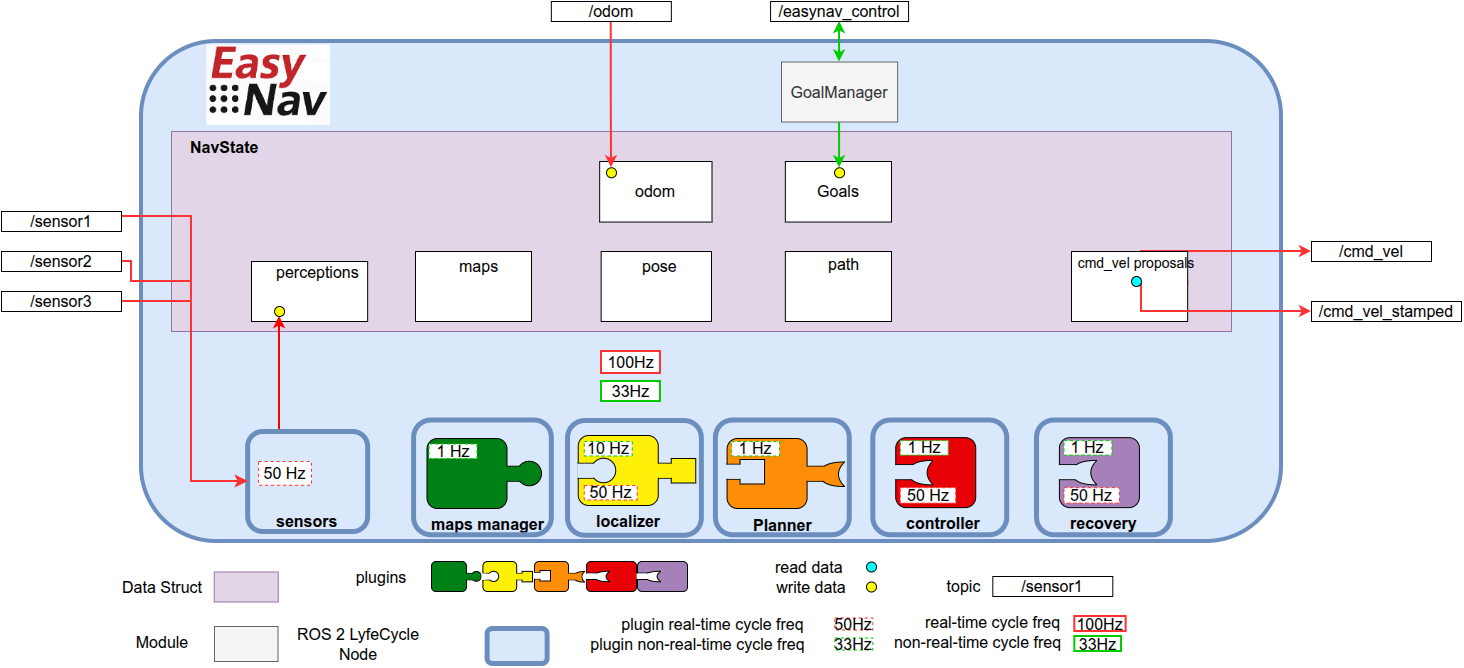

The figure above illustrates the general architecture of EasyNav.

EasyNav runs within a single process that hosts a ROS 2 Lifecycle Node called SystemNode, which coordinates the entire navigation system. Through composition, SystemNode includes several other ROS 2 Lifecycle Nodes, each responsible for a specific function in the navigation pipeline:

Sensors Node: This node collects and preprocesses all sensory input used by the navigation system, across six built-in perception types (point clouds/laser scans, images, IMU, GNSS, odometry, and 3D detections). Sensors are ungrouped by default; they are only placed into a named group when explicitly configured to do so (see Sensor Input and Perception Handling).
MapsManager Node: Responsible for how the environment is represented. It supports multiple plugins that define the actual data structure for the map: costmaps, NavMap triangulated meshes, Bonxai probabilistic voxel maps, octomaps, and simpler binary maps, among others. The plugin selection is configurable depending on the application or use case.
Localizer Node: Estimates the robot’s position within the map. It uses a localization plugin that must be compatible with the type of environment representation used by the MapsManager.
Planner Node: Computes a path from the robot’s current position to its goal (as managed by the GoalManager). The selected plugin determines the planning algorithm used.
Controller Node: Generates velocity commands to follow the planned path, through a controller plugin. It is also the single velocity output of EasyNav: it selects, every real-time cycle, among the commands proposed by the controller and by the recovery system, smooths it within the robot’s limits, and publishes it as Twist or TwistStamped (see Velocity Output: Robot Limits, Mux and Smoother).
Recovery Node: Hosts the recovery system, a plugin that detects problems (localization lost, robot stuck, obstacle ahead…) and reacts to them: it can drive or stop the robot, hold or abort the mission, change parameters, or terminate EasyNav (see Recovery System).

An EasyNav application is built by combining multiple plugins from the different EasyNav components. Typical configurations may include combinations such as the following:

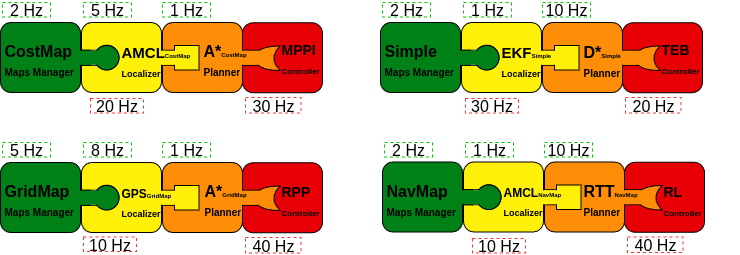

This figure illustrates several possible plugin compositions. The key aspect is ensuring that the selected plugins are compatible with one another. For example, if a maps manager based on costmaps is chosen, the remaining plugins must either support this representation or operate independently of it. In practice, the localizer and planner are usually tightly coupled to the representation defined by the maps manager, whereas the controller tends to be more independent, since it typically relies on route formats that are relatively standardized.

It is also possible to use Dummy plugins. Each component provides one in case you want to build an application that does not require that specific functionality. For example, a person-following application may not need either a map or a localizer, while an outdoor navigation application may rely on GPS for localization and simply plan a straight-line path to the target.

These plugin combinations are defined in the single EasyNav configuration file, where the plugins for each component and their execution frequencies are specified. This is, simplified, params/simple.params.yaml of the Kobuki PlayGround:

controller_node:
  ros__parameters:
    use_sim_time: true
    robot_limits:
      max_linear_vel: 0.6
      max_angular_vel: 1.0
    controller_types: [simple]
    simple:
      rt_freq: 30.0
      plugin: easynav_simple_controller/SimpleController
      look_ahead_dist: 0.2
      k_rot: 0.5

localizer_node:
  ros__parameters:
    use_sim_time: true
    localizer_types: [simple]
    simple:
      rt_freq: 50.0
      freq: 5.0
      reseed_freq: 1.0
      plugin: easynav_simple_localizer/AMCLLocalizer
      num_particles: 100
      noise_translation: 0.05
      noise_rotation: 0.1
      noise_translation_to_rotation: 0.1
      initial_pose:
        x: 0.0
        y: 0.0
        yaw: 0.0
        std_dev_xy: 0.1
        std_dev_yaw: 0.01

maps_manager_node:
  ros__parameters:
    use_sim_time: true
    map_types: [simple]
    simple:
      freq: 10.0
      plugin: easynav_simple_maps_manager/SimpleMapsManager
      package: easynav_playground_kobuki
      map_path_file: maps/home.map

planner_node:
  ros__parameters:
    use_sim_time: true
    planner_types: [simple]
    simple:
      freq: 0.5
      plugin: easynav_simple_planner/SimplePlanner

sensors_node:
  ros__parameters:
    use_sim_time: true
    forget_time: 0.5
    sensors: [laser1]
    laser1:
      topic: /scan_raw
      type: sensor_msgs/msg/LaserScan

recovery_node:
  ros__parameters:
    use_sim_time: true
    recovery_manager:
      plugin: easynav_simple_recovery/SimpleRecoveryManager

system_node:
  ros__parameters:
    use_sim_time: true
    robot_geometry:
      radius: 0.3
      height: 0.5
    position_tolerance: 0.1
    angle_tolerance: 0.05

Each node declares one or more plugin types (e.g., simple) that can be dynamically selected. The plugin name (e.g., easynav_simple_controller/SimpleController) must match the name registered in the plugin system.

This design allows for easy experimentation with different algorithms or system behaviors simply by modifying configuration files—without changing any source code.

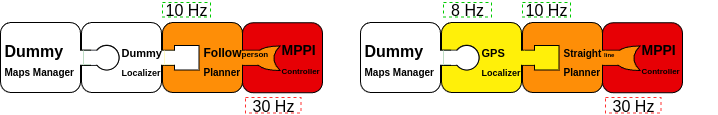

Some applications may not require a full navigation pipeline. For example, systems focused on teleoperation, behavior testing, or hardware validation might not need environment representation, localization, or path planning.

To support such minimal setups, EasyNav provides a Dummy plugin for each core module. These plugins implement the required interfaces but do not perform any real computation. This allows the system to run with minimal overhead while remaining fully compatible with the rest of the EasyNav infrastructure.

Below is an example configuration using dummy plugins for all components, effectively creating a Dummy Navigation System:

controller_node:
  ros__parameters:
    use_sim_time: true
    controller_types: [dummy]
    dummy:
      rt_freq: 30.0
      plugin: easynav_controller/DummyController
      cycle_time_rt: 0.001

localizer_node:
  ros__parameters:
    use_sim_time: true
    localizer_types: [dummy]
    dummy:
      rt_freq: 50.0
      freq: 5.0
      reseed_freq: 0.1
      plugin: easynav_localizer/DummyLocalizer
      cycle_time_nort: 0.01
      cycle_time_rt: 0.001

maps_manager_node:
  ros__parameters:
    use_sim_time: true
    map_types: [dummy]
    dummy:
      freq: 10.0
      plugin: easynav_maps_manager/DummyMapsManager
      cycle_time_nort: 0.1

planner_node:
  ros__parameters:
    use_sim_time: true
    planner_types: [dummy]
    dummy:
      freq: 1.0
      plugin: easynav_planner/DummyPlanner
      cycle_time_nort: 0.2

sensors_node:
  ros__parameters:
    use_sim_time: true
    forget_time: 0.5

recovery_node:
  ros__parameters:
    use_sim_time: true
    recovery_manager:
      plugin: easynav_recovery/DummyRecoveryManager

system_node:
  ros__parameters:
    use_sim_time: true
    position_tolerance: 0.1
    angle_tolerance: 0.05

DummyRecoveryManager does nothing. It is also what the recovery node loads when recovery_manager.plugin is not set.

Note

cycle_time_rt/cycle_time_nort are optional and default to 0.0 (no delay, no CPU cost) — with them unset, Dummy plugins are as lightweight as the “minimal overhead” description above implies. When set, they are implemented as a busy-wait, not a sleep: the plugin will pin a CPU core at ~100% for that duration on every cycle. This is deliberate, so that a Dummy plugin configured this way simulates a genuinely CPU-bound slow plugin — including its effect on other SCHED_FIFO real-time work sharing that core — rather than just an equivalent wall-clock delay. Set these thoughtfully: a large cycle_time_rt relative to rt_freq will keep a core continuously busy.

This configuration is especially useful for testing system integration, message flow, and user interfaces without requiring sensor data or a simulated robot. You can later replace dummy plugins with functional ones as needed.

Coordinate Frames (TF)

EasyNav follows REP-105 for its frame-naming convention, and centralizes all frame configuration in a single place: system_node. Rather than each node or plugin declaring its own frame parameters (an early version of EasyNav had, for example, a perception_default_frame parameter local to sensors_node), SystemNode declares six frame parameters once, assembles them into a single TFInfo struct, and pushes it into RTTFBuffer — a process-wide singleton that is both the shared tf2_ros::Buffer used for real-time TF lookups and the single source of truth for frame names across EasyNav.

Parameter (on `system_node`)	Default	Meaning
`tf_prefix`	`""` (empty)	Optional prefix prepended to every frame below; used to give each robot its own TF tree in multi-robot setups (see Multi-Robot Navigation with EasyNav).
`map_frame`	`"map"`	Global map frame.
`odom_frame`	`"odom"`	Odometry frame.
`robot_frame`	`"base_link"`	Robot base frame.
`robot_footprint_frame`	`"base_footprint"`	Robot footprint frame (e.g. used by `SensorsNode` as the target frame for the fused perception cloud, see Sensor Input and Perception Handling).
`world_frame`	`"earth"`	Global/earth-fixed frame used by global estimators (e.g. GNSS-based fusion in `easynav_fusion_localizer`).

On on_configure(), SystemNode reads these six parameters into a TFInfo and calls RTTFBuffer::getInstance()->set_tf_info(tf_info). If tf_prefix is non-empty, this call automatically prepends "<tf_prefix>/" to map_frame, odom_frame, robot_frame, robot_footprint_frame and world_frame — this is how a multi-robot setup gets a fully namespaced TF tree per robot (r1/base_link, r1/odom, …) from a single tf_prefix: r1 parameter, without spelling out every frame name per robot.

Any node or plugin that needs a frame name reads it from the shared singleton instead of hardcoding a literal such as "map" or "base_link":

const auto & tf_info = easynav::RTTFBuffer::getInstance()->get_tf_info();
const std::string & map_frame = tf_info.map_frame;

This is why plugins (obstacle filters, localizers, the fused-perception publisher in SensorsNode, …) always resolve frames through RTTFBuffer::getInstance()->get_tf_info() rather than through a per-node parameter.

get_tf_info() returns a snapshot copy (taken under an internal lock), not a reference into live state — it is read continuously from both the real-time and non-real-time threads (see below) while set_tf_info() can in principle be called again on a reconfigure, so the code above is safe to use exactly as written from either thread.

Robot Geometry

The robot’s shape is configured once, in system_node, and shared with every component that needs it (inflation filters, planners, safety reflexes, recovery systems…):

Parameter (on `system_node`)	Default	Meaning
`robot_geometry.radius`	`0.3`	Circumscribed radius: the smallest circle containing the robot (m).
`robot_geometry.inscribed_radius`	`radius`	The largest circle inside the robot (m). Defaults to `radius` (a round robot).
`robot_geometry.height`	`0.5`	The top of the robot, above the robot frame (m).

As with frames, SystemNode reads them on every configure and shares them, before its subnodes configure, through a process-wide singleton (RobotGeometryRegistry). Plugins read them with MethodBase::get_robot_geometry(); any other code, with easynav::get_robot_geometry(node) (easynav_common/RobotGeometry.hpp).

Components used to declare their own copies (e.g. an inflation filter’s inscribed_radius, a planner’s robot_radius). Those parameters still work, with a deprecation warning, where robot_geometry does not configure that field; robot_geometry takes precedence when both are set.

Velocity Output: Robot Limits, Mux and Smoother

ControllerNode is the only component that publishes velocity commands (cmd_vel, or cmd_vel_stamped with controller_node.use_cmd_vel_stamped). Every real-time cycle:

The controller plugin computes its command (cmd_vel in NavState), which is proposed as the CONTROLLER source if it is a new one: its stamp or its value changed since the last one (see Safety).
The recovery system may propose its own: TAKEOVER (it drives the robot) or OVERRIDE (an emergency, e.g. braking). See Recovery System.
The VelocityMux selects one: OVERRIDE > TAKEOVER > pause (zero velocity) > CONTROLLER. Proposals last one cycle, so no source can leave a stale command behind. Proposals with non-finite values (NaN, inf) are discarded (see Safety).
The VelocitySmoother brings the published command towards the selected one within the robot limits, per axis, stopping at zero before a change of direction. An OVERRIDE is published as is.

The robot limits are configured once, in controller_node:

controller_node:
  ros__parameters:
    robot_limits:
      max_linear_vel: 0.6      # m/s, forward
      min_linear_vel: -0.3     # m/s, backward (0: no reversing)
      max_angular_vel: 1.0     # rad/s, either direction
      max_linear_acc: 1.0      # m/s^2, speeding up
      max_linear_decel: 1.0    # m/s^2, slowing down
      max_angular_acc: 2.0     # rad/s^2
      max_angular_decel: 2.0   # rad/s^2

Controller plugins read them with ControllerMethodBase::get_robot_limits() instead of declaring their own, and the smoother enforces the same limits on every command published. A controller’s former limit parameters (e.g. max_linear_speed) still work, with a deprecation warning, where robot_limits does not set that limit. Likewise, system_node.use_cmd_vel_stamped is deprecated in favor of controller_node.use_cmd_vel_stamped.

When EasyNav is deactivated, ControllerNode brakes within the deceleration limits and always ends with an exact zero command: drivers usually keep executing the last command received.

ControllerNode also makes sure the robot never keeps executing a stale or invalid command: see Stale and invalid commands.

Braking before an obstacle is not the controller’s job: the recovery system does it, for whatever command is about to be sent (the controller’s former colision_checker.* parameters are gone).

Reconfiguring EasyNav at Runtime

EasyNav can go active → inactive → unconfigured → inactive → active in the middle of a mission, for example to change parameters or to switch plugins:

Parameters changed while unconfigured, including the plugin of any component, take effect when it is configured again. Every plugin tolerates being initialized again on the same node, even after a plugin of another type under the same name.
The mission survives: the GoalManager is kept across cleanup/configure, so an ongoing navigation is neither cancelled nor lost.
Localizers continue from the last known pose. On its first cycle, a localizer gets the valid robot_pose left in NavState by the previous one, of any type (e.g. AMCL ↔ Fusion), through LocalizerMethodBase::on_last_known_pose().
The robot stops while EasyNav is not active.

The recovery system can trigger such a reconfiguration itself (see Recovery System), except in safety mode (see Safety parameters and safety mode).

NavState: The Shared Blackboard

A key architectural component of EasyNav is the NavState, a shared blackboard that holds all the internal state information required by the navigation system.

Each module in EasyNav—such as the Localizer, Planner, or Controller—reads its inputs from the NavState and writes its outputs back to it. This central structure replaces the need for internal ROS 2 communications between modules.

The motivation behind using a shared blackboard is to:

Avoid ROS 2 topic-based communication internally, reducing unnecessary overhead and complexity.
Improve real-time determinism, as data access becomes local and predictable.
Simplify integration and debugging, by consolidating all system-relevant information in a single place.

The NavState contains data such as:

the robot’s estimated pose,
the current navigation goal,
planned paths,
velocity commands,
perception data,
and diagnostic or meta-state information.

By inspecting the NavState at runtime, developers gain full visibility into the internal state of EasyNav at any given moment. This approach not only improves transparency, but also enables advanced tooling for monitoring, introspection, and explainability.

Future versions of EasyNav may include graphical or CLI-based tools to explore and trace the NavState over time.

Real-Time Execution Model

Another key feature of EasyNav is its emphasis on real-time performance. The navigation system is designed to react with strict timing constraints, minimizing latency from perception to action.

To achieve this, EasyNav separates execution into two distinct control loops:

Real-Time Cycle This loop is optimized for minimal end-to-end latency. Its goal is to process new sensor data and update the robot’s motion commands as quickly as possible. It includes:
- perception input processing,
- pose prediction via odometry,
- velocity command generation by the controller,
- fast recovery reactions (e.g. braking before an obstacle),
- and the selection, smoothing and publication of the velocity command (Twist or TwistStamped).
Non-Real-Time Cycle This loop handles operations where occasional execution delays are tolerable. Tasks in this loop include:
- map updates,
- localization corrections based on perception (e.g., particle filter resampling),
- path planning,
- and recovery: diagnosing problems and deciding how to handle them.

Additionally, when new perception data is received, the real-time cycle is triggered immediately, allowing the system to respond as fast as possible and minimize perception-to-action latency.

Frequencies: system cycles and components

There are two kinds of frequencies, and only one of them is what navigation needs:

Each component’s frequency — rt_freq and freq of every plugin (controller, localizer, maps manager, planner, recovery evaluators). This is what matters: the controller computes a command at its rt_freq, the planner plans at its freq, and so on.
The system cycles — system_node.rt_freq (200 Hz by default) and system_node.freq. They do not run the components at that rate: each cycle receives the sensor data (RT), publishes the velocity command (RT) and checks, for each component, whether it is time for it to run. If it is not, the component does nothing in that cycle — except when it is triggered by new perceptions. So the system frequency is the resolution of that check, not the components’ rate.

The rules that follow from this:

A component’s frequency must not exceed its system cycle’s: every <plugin>.rt_freq at most system_node.rt_freq and every <plugin>.freq at most system_node.freq. Otherwise EasyNav fails to configure, naming the parameter. Both must also be finite and greater than zero (std::runtime_error when the plugin initializes).
The schedule does not drift: each run is scheduled one period after the previous scheduled time, not after the cycle that ran it. A controller at 30 Hz checked by a 50 Hz cycle runs 30 times per second, alternating gaps of 20 and 40 ms; a cycle that comes a little late does not cost a run. If a component falls more than one period behind (e.g. the cycle stalled), the missed runs are lost — it runs once and its schedule restarts from then, without a burst of catch-up runs. A triggered run also restarts the schedule.

Whether each component keeps its frequency is monitored. Every component’s runs are counted in windows of 1 s or 10 periods, whichever is longer. A window with fewer than 90 % of the expected runs (with one run of margin) is slow: the component’s diagnostic becomes WARN (after 3 slow windows in a row, its message says for how long); a window on rate makes it OK again. It is only reported, never an ERROR: the recovery system does not abort, mitigate or ask for help because of it. Time without checks counts too (a component that blocks its cycle for seconds is reported), except while EasyNav is inactive: the nodes restart the measurement when they are activated. The diagnostics are in NavState’s diagnostics group (and on /diagnostics with the diagnostic recovery manager):

NavState key	Monitors
`diagnostics.<plugin>.rt_rate`	`<plugin>.rt_freq` (controller, localizer RT update)
`diagnostics.<plugin>.rate`	`<plugin>.freq` (localizer, maps manager, planner, recovery evaluators)

Each one is written when first checked (OK, “measuring”) and then only on changes. Running faster than configured (e.g. triggered by the sensors) is fine. The rates are measured with the nodes’ clock: in simulation, simulated time.

The system RT cycle itself is monitored too (diagnostics.rt_cycle, see Real-time cycle monitoring and heartbeat), but outside safety mode a late RT cycle is only a WARN: if the components still keep their frequencies, navigation is not affected. A slow RT cycle matters by itself only for what it does directly — receiving the sensors and publishing the commands.

In practice: set system_node.rt_freq high enough for the fastest RT component and for the latency you want between a perception and its command; and if a component reports that it does not keep its frequency, lower that component’s frequency or make its update (or what shares its cycle) cheaper — raising the system frequency does not help.

The real-time cycle runs in its own thread with SCHED_FIFO priority 80 when system_node.use_real_time is true (the default). The system must allow it; see Real-time System Setup.

This dual-cycle model balances responsiveness with computational stability, ensuring critical actions happen with deterministic timing while less urgent tasks are scheduled opportunistically.
