Getting Started

This section guides you through your first run of EasyNavigation (EasyNav) using a simulated Turtlebot2 robot in a domestic environment, from the Kobuki PlayGround.

Overview

We will run a ready-to-use simulation setup consisting of:

  • Robot: Turtlebot2 (Kobuki) with a 2D lidar

  • Environment: indoor domestic map (AWS RoboMaker small house)

  • Configuration: first the Simple plugins, then the Costmap plugins with the Regulated Pure Pursuit controller

  • Simulator: Gazebo Harmonic with RViz2 visualization

Setting up

Install the Kobuki PlayGround with APT (see Build & Install). It brings EasyNav and every plugin its configurations use:

sudo apt install ros-<distro>-easynav-playground-kobuki

Use jazzy, kilted or lyrical: the PlayGrounds do not support humble’s Gazebo, and rolling has no APT packages (use Pixi or build from source). The PlayGround is self-contained: the robot model, the world, the maps and the EasyNav configurations are all in this package.

To build it from source instead, build EasyNav as described in Install from source (~/easynav_ws), then clone the PlayGrounds into the same workspace:

cd ~/easynav_ws/src
git clone -b 0.5.0 https://github.com/EasyNavigation/easynav_playgrounds.git
cd ~/easynav_ws
rosdep install --from-paths src --ignore-src -y -r
colcon build --symlink-install --cmake-args -DCMAKE_BUILD_TYPE=Release

Sourcing the workspace

In every new terminal you open for the rest of this guide:

source /opt/ros/<distro>/setup.bash
source ~/easynav_ws/install/setup.bash  # Only if you built from source

First run: the Simple stack

Launching the simulator

In a first terminal, start the simulation of a Turtlebot2 robot in a domestic environment:

ros2 launch easynav_playground_kobuki_worlds gazebo_sim.launch.yaml

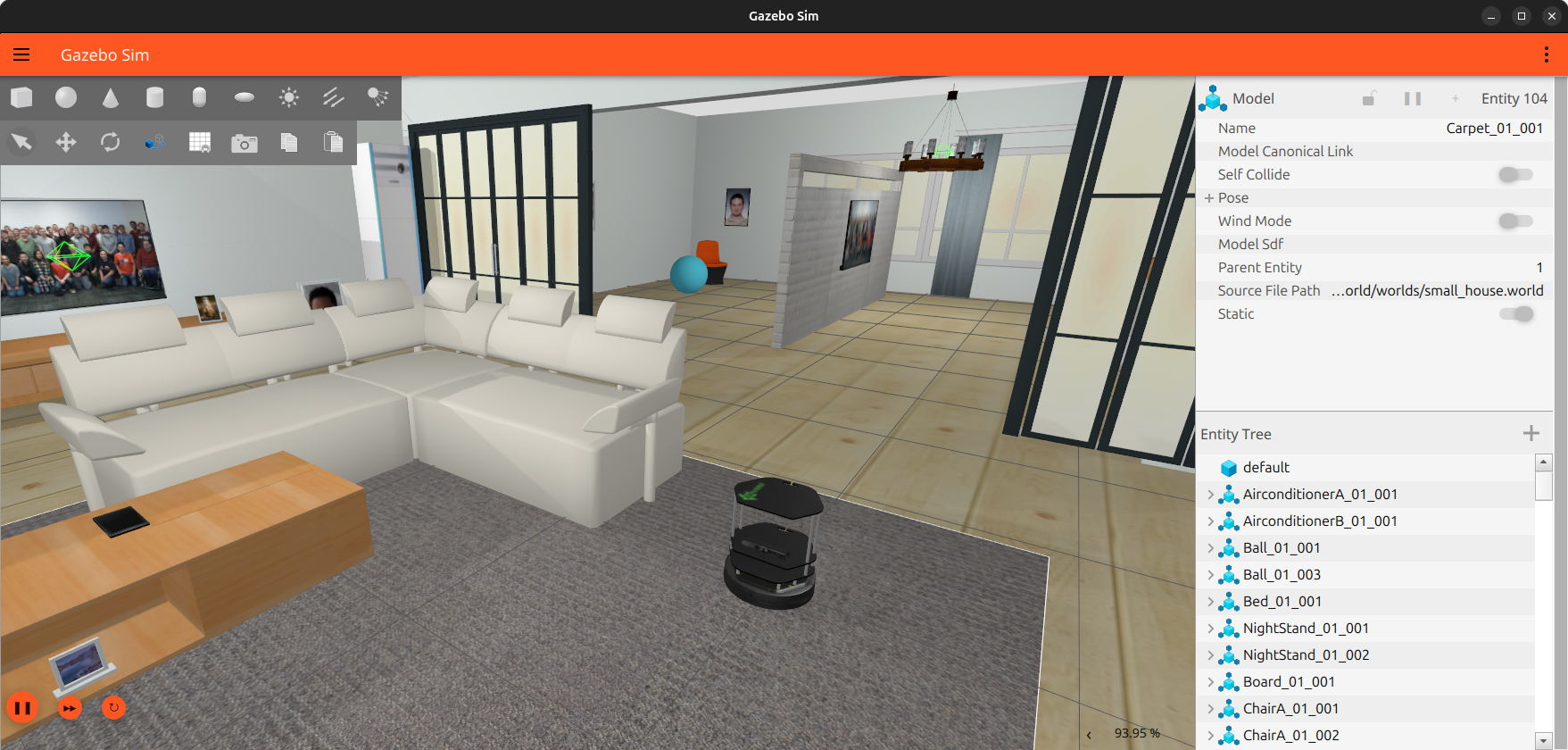

Turtlebot2 simulation in Gazebo

To save resources, you can disable the Gazebo graphical interface with gui:=false.

Launching EasyNav

EasyNav is a single program, system_main, and a parameter file that says which plugins it uses and how. In a second terminal, start it with the PlayGround’s params/simple.params.yaml:

ros2 run easynav_system system_main --ros-args \
  --params-file $(ros2 pkg prefix easynav_playground_kobuki)/share/easynav_playground_kobuki/params/simple.params.yaml

The parameter file configures the Simple plugins: a binary occupancy map (maps/home.map), an AMCL localizer over it, an A* planner and a proportional controller.

Warning

The Simple stack is a minimal example, with very basic algorithms, made to show how EasyNav works and how plugins are written. Do not expect good navigation from it. For real use, try the Costmap configuration below.

Visualizing in RViz2

In a third terminal, start RViz2 with the PlayGround’s configuration:

ros2 run rviz2 rviz2 \
  -d $(ros2 pkg prefix easynav_playground_kobuki)/share/easynav_playground_kobuki/rviz/easynav_simple.rviz \
  --ros-args -p use_sim_time:=true

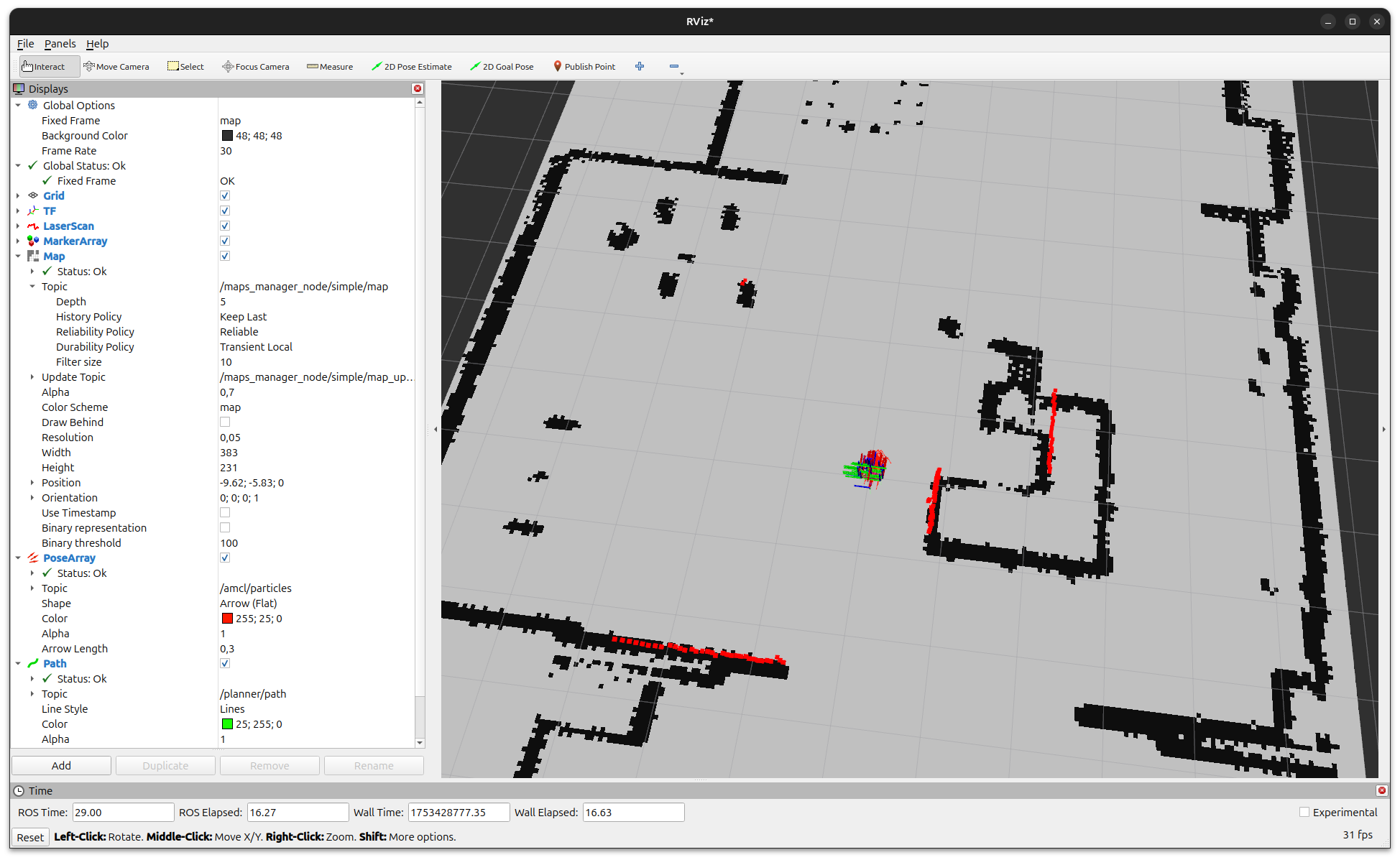

RViz2 with EasyNav loaded

Sending navigation goals

In RViz2, use the “2D Goal Pose” tool (in the top toolbar) to send a navigation goal. Click on a point in the map, and the robot will start navigating.

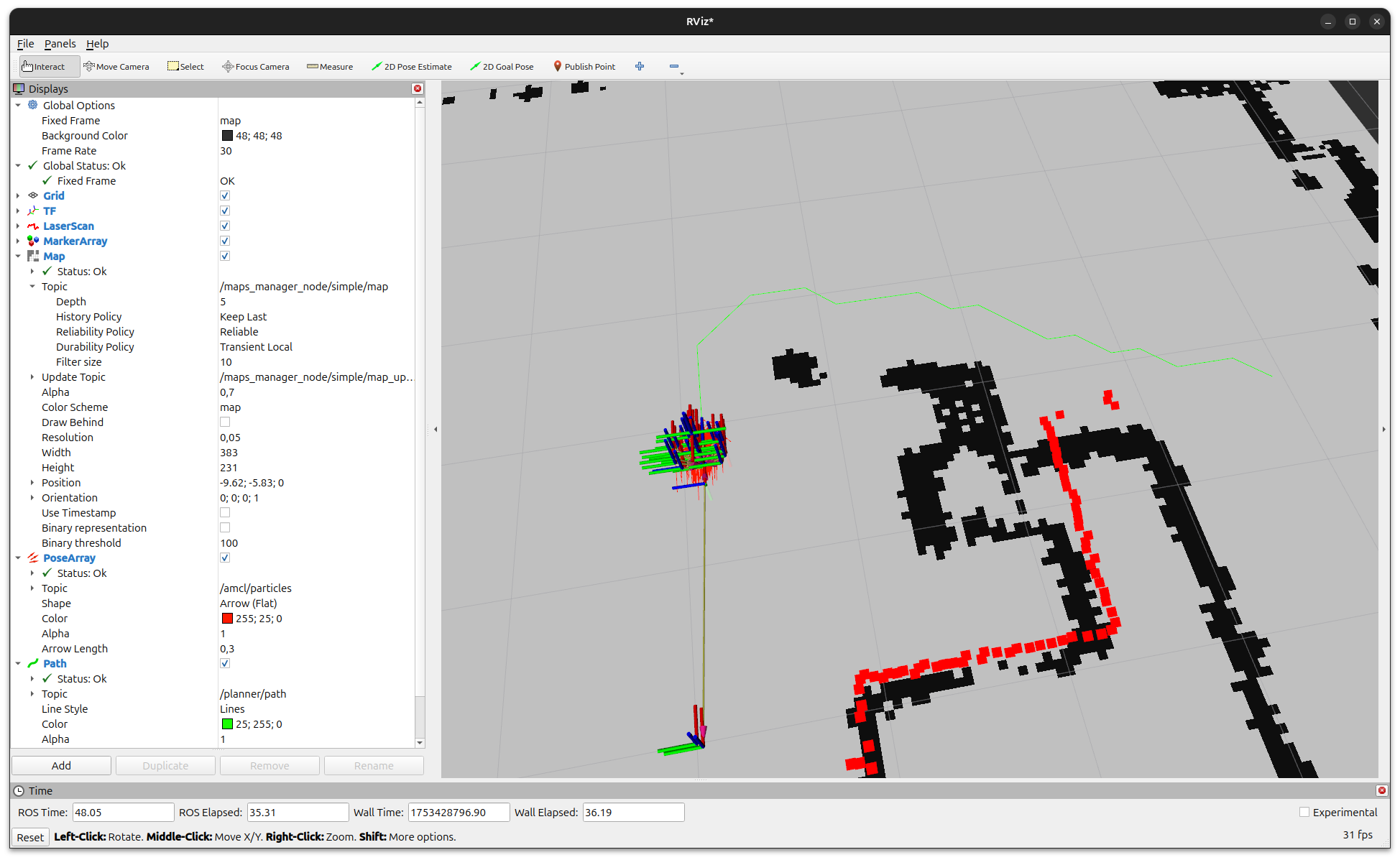

Turtlebot2 navigating using EasyNav

Visualizing internal process with the TUI

In addition to RViz2, EasyNav provides a Terminal User Interface (TUI) that allows you to monitor the internal state of the navigation system in real time. It is a text-based dashboard that displays key diagnostic information and performance metrics directly in the terminal.

You can launch it in a new terminal after starting the EasyNav system:

ros2 run easynav_tools tui

The TUI is divided into several panels:

  • Navigation Control: shows the current navigation mode (e.g., FEEDBACK, ACTIVE), current robot pose, progress toward the goal, and remaining distance.

  • Goal Info: displays details of the active navigation goal, angular and positional tolerances, and goal list.

  • Twist: real-time linear and angular velocity commands published by EasyNav.

  • Diagnostics: the diagnostics of the recovery system (diagnostic_msgs/DiagnosticArray on diagnostics), e.g. from DiagnosticRecoveryManager (see Recovery System).

  • Mitigation: what the active recovery mitigation reports doing (on mitigation), cleared when the problem is resolved.

  • NavState: shows internal blackboard data structures such as robot_pose, cmd_vel, active map, and navigation_state.

  • Time stats: performance profiling of each system component (localizer, planner, controller, maps manager, etc.) including average execution time and update frequency.

This interface is especially useful for debugging or performance evaluation without relying on graphical tools.

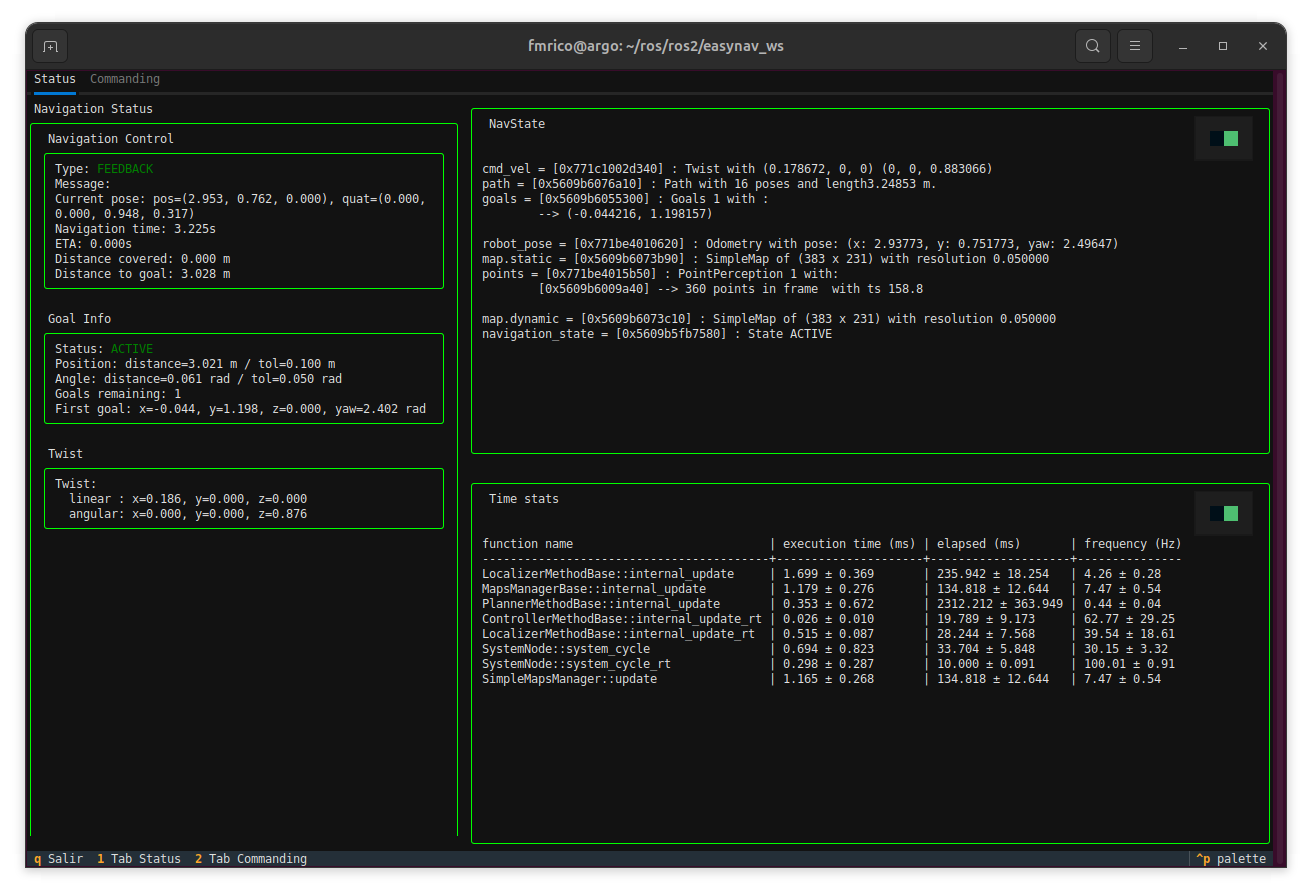

EasyNav Terminal User Interface

Press q to exit the TUI.

Note

The TUI is optimized for dark terminals and supports color highlighting for active modules and real-time performance indicators.

Troubleshooting

  • Robot does not move: check that EasyNav is running (system_main in its terminal) and that the localization in RViz2 matches the robot’s position in Gazebo.

  • EasyNav terminates by itself: the recovery system may have requested a shutdown (e.g. no sensor data, or a miswired ROS graph). The reason is printed when system_main exits.

  • The robot does not appear in Gazebo: if you switched branches of the PlayGround, remove its build/ and install/ directories and build it again: with --symlink-install, files removed in the new branch stay in install/ as broken links.

  • Build errors: revisit Build & Install and ensure dependencies were correctly installed via rosdep.
